MCU 30XX – Measurement Conditioning Unit for Scalable Test & Automation Solutions

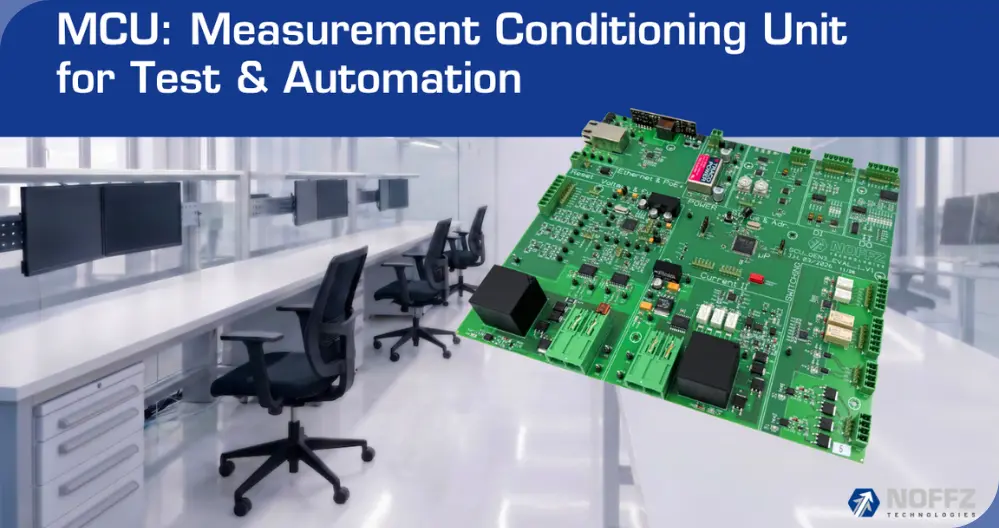

The MCU 30xx is a flexible and scalable Measurement Conditioning Unit designed for decentralized testing, measurement, and control applications. It has been specifically developed for modern validation and automation environments, combining high-precision data acquisition, real-time communication, and seamless system integration in a compact, modular platform.
Thanks to open interfaces such as REST API and MQTT, the MCU 30xx can be easily integrated into both existing and new test architectures—either as a standalone system or as part of fully automated solutions.
Typical Applications
The MCU 30xx is ideal for a wide range of testing, validation, and automation environments. It can be flexibly used as an add-on in existing test systems in R&D and validation, while also supporting the development of fully automated test systems (ATE) and modular production environments.
In addition, it is well suited for industrial test automation and enables decentralized measurements directly within adapters. Especially in applications with a high channel count, such as monitoring systems or multi-DUT testers, the MCU 30xx demonstrates its strengths in scalability and performance.
THIS IS WHAT DISTINGUISHES OUR PRODUCT
Features and Specifications
- Scalable, decentralized system architecture
- REST API and MQTT for easy integration
- Web-based user interface for configuration and control
- Power over Ethernet (PoE+) for reduced cabling effort
- Modular expansion for various applications
- High-precision measurement and control functions in one platform
Advantages
Flexible System Integration
- REST API for low-latency communication
- MQTT support for modern connectivity
- Integration with open-market systems
Decentralized & Scalable Architecture
- Decentralized (“on-spot”) integration

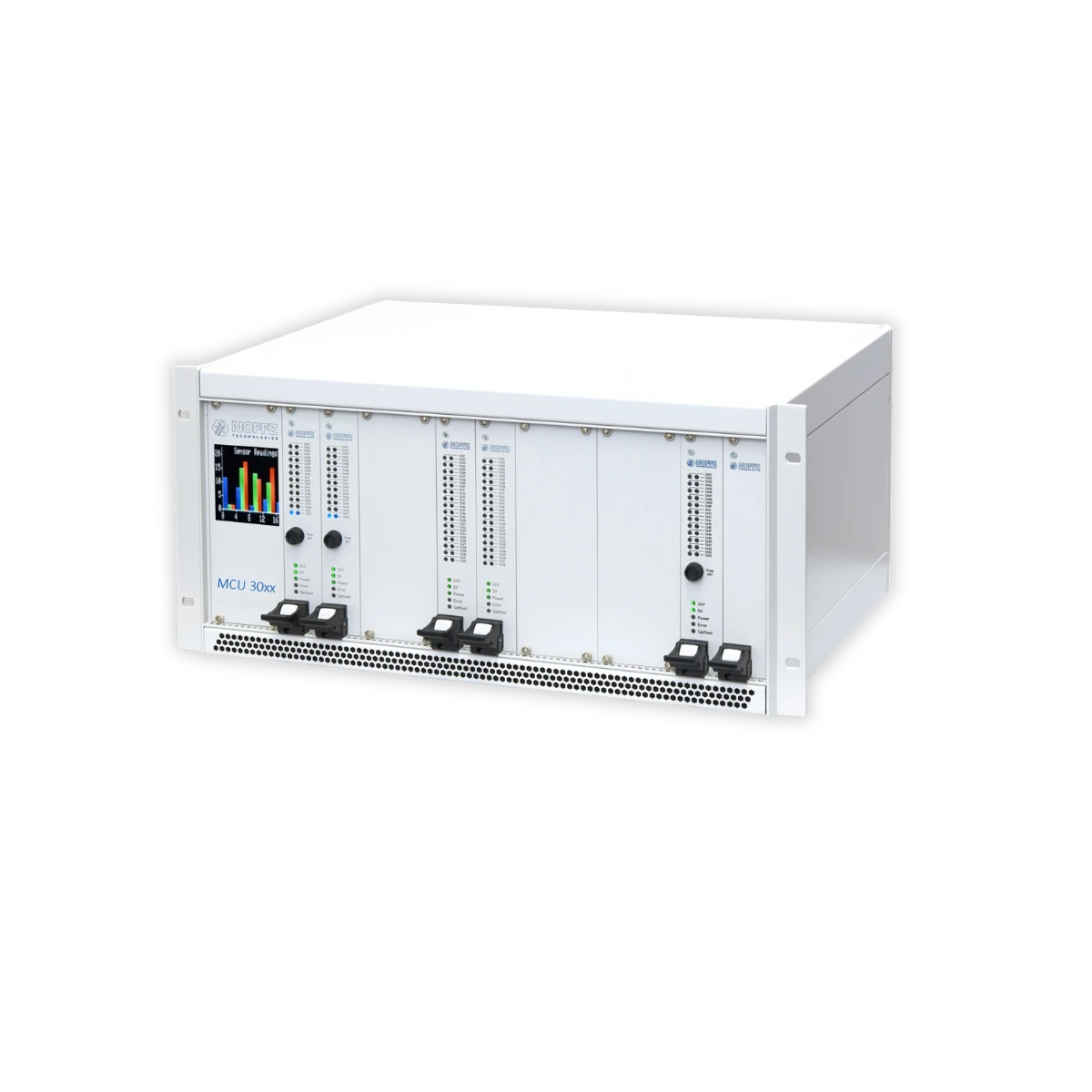

- Standalone and 19" rack-mounted variants
User-Friendly Operation
- Web-based interface for configuration and control
Efficient System Design
- Power over Ethernet (PoE+) up to 25 W
- Reduced cabling effort and simplified installation
Advanced Measurement and Control Functions
The MCU 30xx combines high-precision measurement technology, signal generation, and versatile I/O functionality within a modular platform. It enables reliable data acquisition, control, and synchronization in distributed and automated systems.
High-Precision Voltage and Current Measurement
The MCU 30xx enables highly accurate acquisition of voltage and current signals and supports differential, pseudo-differential, and single-ended measurement methods. The voltage measurement range extends from millivolts up to 59 V with microvolt resolution, while currents from microamps to 60 A can be reliably measured thanks to auto-ranging.
With flexible sampling rates from 250 S/s to 128 kS/s and galvanically isolated measurement channels, the MCU 30xx ensures precise, stable, and secure data acquisition even in demanding test environments.
Flexible Signal Generation
The MCU 30xx offers versatile signal generation capabilities, enabling the creation of sine, square, and pulse signals for a wide range of testing requirements. The broad frequency range from 0.1 Hz to 20 kHz supports precise signal control and simulation across various applications.
In addition, the platform is already prepared for future extensions, such as arbitrary signal generation, providing a future-proof solution for evolving needs in test and automation technology.
Digital Interfaces & Control
- PWM input and output (e.g., for airbag or charging control)
- Isolated digital inputs (5 V – 24 V)
- Isolated digital outputs (3.3 V – 24 V, up to 300 mA)
- Switching via reed relay, EMR, and MOSFET
- I²C interface
- Integrated auxiliary voltages (1.8 V, 3.3 V, 5 V)
Seamless Integration into Your Test Architecture
- Standalone or rack-based integration
- Decentralized (“on-spot”) deployment
- REST API and MQTT for fast communication
- Compatible with open systems and components
