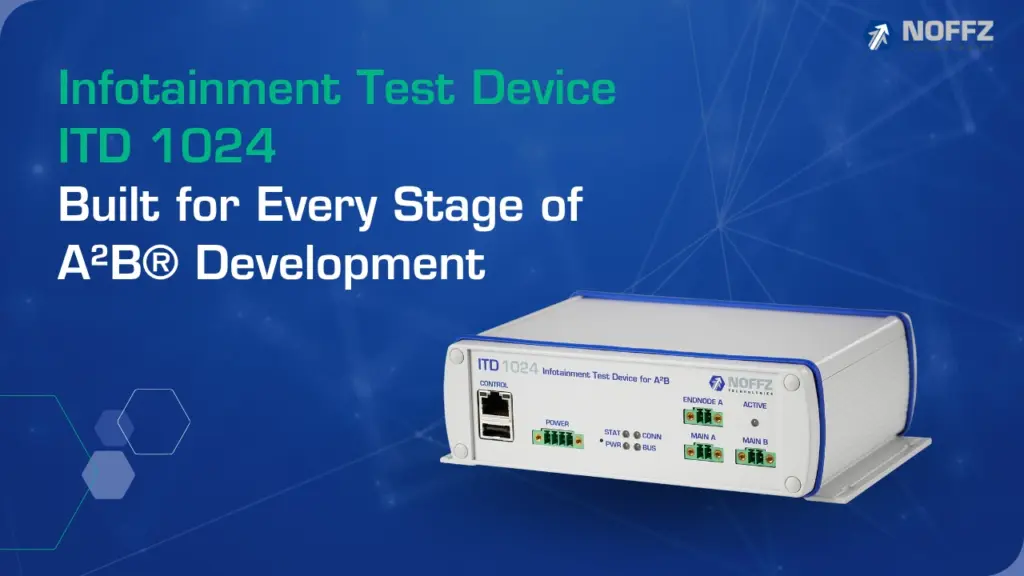

Infotainment Test Device ITD 1024
Infotainment Test Device ITD 1024
Infotainment Test Device ITD 1024
Comprehensive simulation of master, slave, and end nodes
in A2B® -networks
Complexity, cost, and weight of audio systems are significantly reduced with the Automotive Audio Bus (A2B®) from Analog Devices Inc. Regardless of their hierarchical structure or whether they are used as master or slave, all A2B® -products must be adequately tested before they are used.
For example, this concerns Hi-Fi amplifiers/speakers, head units, eCall systems, microphones, vibration/noise suppression units, actuators, or sensors.
Our small and very compact Infotainment Test System ITD 1024 does this job for you: It tests all A2B® -signals and communications comprehensively and extremely reliably at all stages of the product development process – during development, for validation, and in production.
THIS IS WHAT DISTINGUISHES OUR PRODUCT
Features & Specifications
- Generates and captures up to 32 audio channels in real time
- Simulates master/slave nodes as well as end nodes of A2B® -networks
- Equipped with two AD2428 transceivers
- Compatible with AD240x, AD241x, AD242x, and AD2433 transceivers
- Configurable via SigmaStudio® by Analog Devices Inc.
- Supports local and phantom power (up to 300 mA) for slave nodes
- Supports interrupts
- Supports external trigger signals
- Optimized for automated test setups through libraries for NI LabVIEW, NI TestStand, and .NET, and an SCPI API for programming languages including Python, C++, and Java

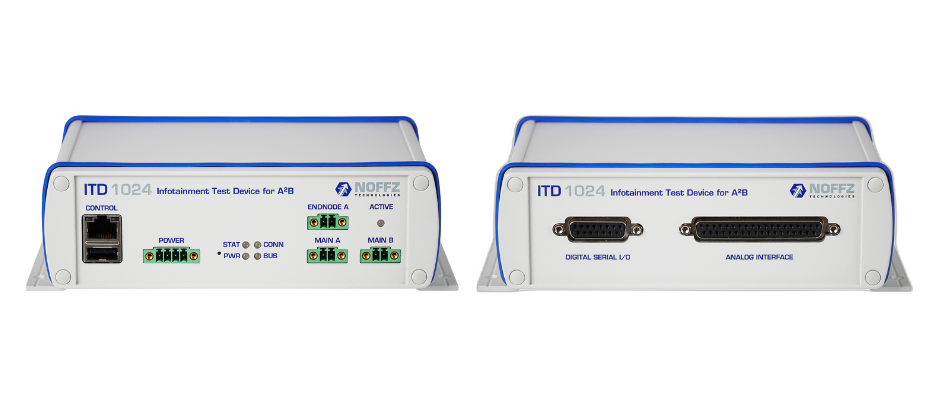

Front and rear panel connectors on the Infotainment Test Device ITD 1024
Advantages
Flexibility
- For all phases of the product development process
- Can be used as a stand-alone application in the lab or integrated into test systems
Automation
- Possible via libraries for NI LabVIEW, NI TestStand and .NET or SCPI API
- Designed for long-term, continuous recording/playback
Three audio interfaces
- Internal TDM interface with 32-bit multi-channel TDM generator/recorder as well as 16 input and 16 output channels
- Analog audio interface with 24-bit multi-channel in/out audio codec as well as 8 input and 8 output channels
- External audio interface (DSIO) as multi-channel TDM interface
End node simulation
- A second integrated A2B® -chipset enables master/slave and end node simulations
CONFIGURE INTERACTIVELY
Software ITD Studio for the Infotainment Test Device
Screenshot of our ITD Studio software for intuitive simulations and measurements as well as fast recovery of saved configurations.
BRIEF PRESENTATION
Testing A2B® -products with the Infotainment Test Device
Easy integration into a test system for automotive components
The ITD 1024 reliably tests master, slave, and end nodes of A2B® -networks. It can be integrated into automated test systems or used as a stand-alone application in validation.
BRIEF PRESENTATION
Testing A2B® -products with the Infotainment Test Device
Easy integration into a test system for automotive components
The ITD 1024 reliably tests master, slave, and end nodes of A2B® -networks. It can be integrated into automated test systems or used as a stand-alone application in validation.
